jQuery Autocomplete Getting Data From Database in ASP.Net

Introduction
This article describes how to add an Auto Complete feature to a text box and get the data from a database in ASP.Net using a jQuery UI .

Description
To create this application you need the jQuery files listed below.

  • jquery-1.9.1.js
  • jquery-ui.js
  • jquery-ui.css
You can download them from the source code attached to this page.
Design
Go to the database and design your table or execute the following script:
CREATE TABLE [dbo].[DEPT]
(DEPTNO NUMERIC(2),
DNAME VARCHAR(14),
LOC VARCHAR(13) );
GO

INSERT INTO [dbo].[DEPT] VALUES (10, 'ACCOUNTING', 'NEW YORK');
INSERT INTO [dbo].[DEPT] VALUES (20, 'RESEARCH', 'DALLAS');
INSERT INTO [dbo].[DEPT] VALUES (30, 'SALES', 'CHICAGO');
INSERT INTO [dbo].[DEPT] VALUES (40, 'OPERATIONS', 'BOSTON');
In Visual Studio create a website and add a page.

Add a Text Box to the page for searching.

Now design your screen as in the following screen:


Or you can copy the following source code:



<body>
   <form id="form1" runat="server">
    Search Department :<asp:TextBox ID="txtSearch" runat="server" ></asp:TextBox>
    </form>
</body>

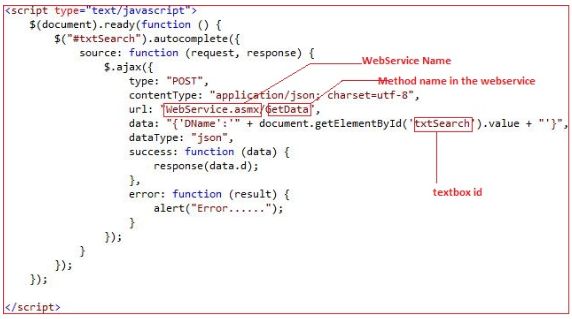

Next add the following JavaScript and CSS style code in the head tag of an aspx file
(this is used to get the data to show the auto complete).


<head id="Head1" runat="server">
    <title></title>
    <link href="Styles/jquery-ui.css" rel="stylesheet" type="text/css" />
    <script src="Scripts/jquery-1.9.1.js" type="text/javascript"></script>
    <script src="Scripts/jquery-ui.js" type="text/javascript"></script>
    <script type="text/javascript">
               $(document).ready(function () {
    $("#txtSearch").autocomplete({
        source: function (request, response) {
            $.ajax({
                type: "POST",
                contentType: "application/json; charset=utf-8",
                url: "WebService.asmx/GetData",
                data: "{'DName':'" + document.getElementById('txtSearch').value + "'}",
                dataType: "json",
                success: function (data) {
                    response(data.d);
                },
                error: function (result) {
                    alert("Error......");
                }
            });
        }
    });
});
   </script>
</head>


Now go to Solution Explorer and add a Web Service to the project (for example, "WebService.asmx").
Now write the following code in the .cs file of the Web Service:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Services;
using System.Data.SqlClient;
/// <summary>
/// Summary description for WebService
/// </summary>
[WebService(Namespace = "http://tempuri.org/")]
[WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
// To allow this Web Service to be called from script, using ASP.NET AJAX, uncomment the following line. [System.Web.Script.Services.ScriptService]
public class WebService : System.Web.Services.WebService
{
    [WebMethod]
    public List<string> GetData(string DName)
    {
        List<string> result = new List<string>();
        using (SqlConnection con = new SqlConnection("Data Source=SYSTEM-30;database=DB_Test_Trainees;user id=test;password=Test"))
        {
            using (SqlCommand cmd = new SqlCommand("select Dname from DEPTDHII where Dname like '%'+@SearchText+'%'", con))
            {
                con.Open();
                cmd.Parameters.AddWithValue("@SearchText", DName);
                SqlDataReader dr = cmd.ExecuteReader();
                while (dr.Read())
                {
                    result.Add(dr["DName"].ToString());
                }
                return result;
            }
        }
    }
}

Now check this line in the code above:

[System.Web.Script.Services.ScriptService]

By default this line is commented. To allow this Web Service to be called from a script using ASP.NET AJAX, uncomment the line.

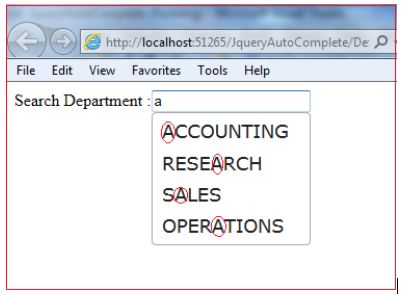

Now build your application. Enter a search query in the TextBox.

To download Source Click Here
